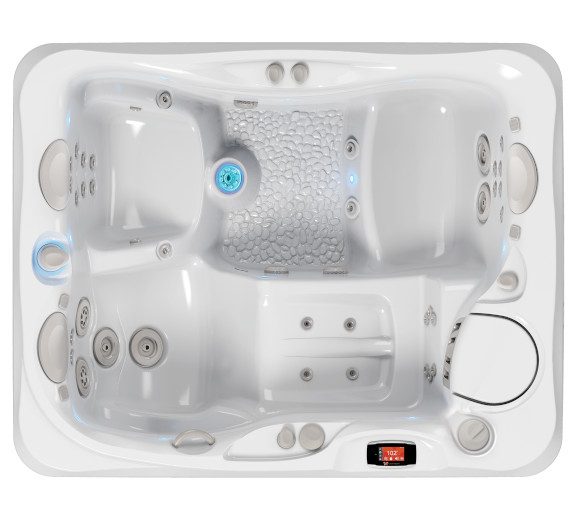

Ravello™

6 Seats – Dimensions: 7′ x 5’6″ – 39 Jets

The Ravello™ by Caldera Spas offers streamlined luxury with effective hydrotherapy. Its 39 jets provide targeted massage to ease daily tension.

Designed to seat up to 6 people, the Ravello features open seating and easy access for relaxed social soaking.

Energy-efficient performance, elegant lighting, and user-friendly controls make the Ravello a smart spa choice.

Request a quote
Categories: ,

Description

Customize Your Spa
Choose Your Finishes

Shells

Cabinets

Cover

Included features

FreshWater® Salt System

Every Utopia Series spa features the intuitive FreshWater® Salt System, which generates chlorine from salt to keep water clean and fresh up to three times longer than standard systems.

FiberCor® Insulation

All Caldera Spas use FiberCor®—a high-density insulation applied at 2 lb. per cubic foot, making it four times denser than standard ½ lb. urethane foam for superior heat retention.

Comfortable, Ergonomic Seating

Ergonomically sculpted seats cradle your body, support proper alignment, and help decompress your spine. Combined with the water’s natural buoyancy, they ease pressure on areas stressed throughout the day.

Hot Tub Circuit Therapy

Each seat in a Caldera spa targets a specific muscle group—from neck and shoulders to back, hamstrings, calves, and feet—delivering a focused, full-body massage as you move from seat to seat

Product Details

General Specifications

Spa dimensions
7′ x 5’6″ x 33″

Number of Spa places
3 Adults

Spa water volume (Gallons)
265 gallons

Spa weight (empty – full)
720 lbs / 3460 lbs approx

Jet Count
39 Total Jets

Characteristics

Jets
1 Euphoria® jet, 2 OrbiSsage® jets, 4 VersaSsage® jets, 2 Euro-Pulse® jets, 30 Euro Directional jets

Water Care Systems
FreshWater® IQ System Included

Ultramasseuse System
N/A

Jet Pumps
2 ReliaFlo® Pumps; 1 Dual-Speed
2.5 HP (5.2BHP) & 1 Single-Speed 2.5HP (5.2 BHP)

Control System
Advent® LCD Touchscreen 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel

Circulation Pump
EnergyPro® for quiet continuous filtration

Heater Output
EnergyPro® Heater 4,000 Watts 230v

Electrical Requirements
230V / 50 amp

Gfci Sub-panel
GFCI Sub-panel (50 amp) included

Filter Size
50 sq. ft. filter

Ozone System
(Optional) Corona Discharge

Water Feature
N/A

Multi-color Led Lighting
SpaGlo® Multi-Zone LED Lighting including 7 Points-of-Interior Lights & Exterior Light Bar

Energy Efficiency
Fully-insulated with FiberCor® material, 2 lb. density, CEC-compliant

Characteristics

Branding
Diagnostic Logo Light mounted in Spacer (between shell and cabinet)

Bottom Seal
ABS Base Pan

Insulating Cover
WeatherPro™ 4” tapered custom fit with hinge seal

Spa Shell Options
Arctic White, White Pearl, Platinum, Tuscan Sun, or Midnight Canyon

Cabinet Type
EcoTech® Plus

Cabinet & Step Colors
Java, Ash & Parchment

Cover Lifter
ProLift® III, or ProLift® II

Cover Colors
Storm, Chestnut, Black

Cover Design
Standard

Speakers
4 – 1.5” square

Entertainment System
(Optional) Wireless Audio System

Step Type
(Optional) Utopia® Step in Java, Ash & Parchment

Smart Spa Technology
(Optional) Caldera Spas App, Powered by the Connected Spa Kit
